Detail produk:
|
| Aplikasi: | Sampel R&D / Produksi Batch Kecil | Sistem Penggerak: | Silinder Udara Pneumatik |
|---|---|---|---|
| Tekanan udara: | 4-7kg/cm2 | Tekanan Maksimum: | 3 Ton |
| Kapasitas Produksi: | 6-10 buah/menit | Kapasitas Cetakan: | 1-3 buah per pukulan |
| Dimensi Mesin: | 600 x 500 x 1100mm (PxLxT) | Berat: | 150kg |
| Operator: | 1 orang | Voltase: | 220V / 1P |
| Menyoroti: | 3 Tons Maximum Pressure Pneumatic Powder Pressing Machine,6-10 pcs/min Production Capacity Cosmetic Powder Press Machine,Pneumatic Air Cylinder Drive Laboratory Powder Press |
||

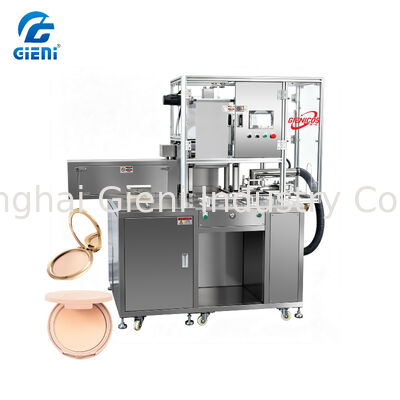

C-18 Pneumatic Powder Pressing Machine Technical Parameter Item Specification Model C-18 Application R&D Sample / Small Batch Production Drive System Pneumatic Air Cylinder Air Pressure 4-7 kg/cm2 Maximum Pressure 3 Tons Production Capacity 6-10 pcs/min Mold Capacity 1-3 pcs per stroke Machine Dimension 600 x 500 x 1100mm (LxWxH) Weight 150KG Operator 1 Person Voltage 220V / 1P Application The C-18 is a pneumatic powder pressing machine designed for laboratory and small scale
