HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

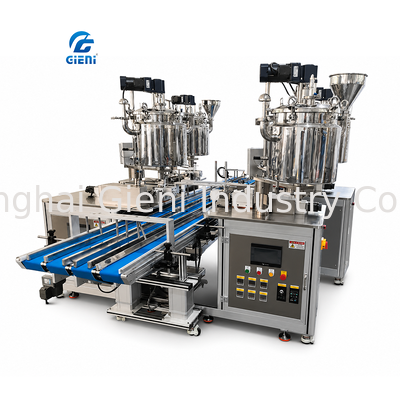

Gambar besar : HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	Gieni
Sertifikasi:	CE, ISO 9001, GMP
Nomor model:	HFM-10N60L

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD 18000-28000 / Set
Kemasan rincian:	Peti ekspor tugas berat dengan alas yang diperkuat dan perlindungan pengering
Waktu pengiriman:	35-45 hari kerja
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	12 set per bulan

Kontak

HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

Deskripsi

Kuantitas nosel:	10	Kapasitas Tangki:	60L (Jaket Ganda)
Kecepatan Produksi:	40-60 botol/menit	Metode pemanasan:	Jaket Listrik dengan Sirkulasi Oli
Kisaran Suhu:	RT-150°C	Rentang Pengisian:	5-1000ML
Bahan tubuh:	Baja Tahan Karat 304	bahan kontak:	Baja Tahan Karat 316L
Kekuatan:	12 kw	Voltase:	380V 3-fase
Kontrol:	PLC dengan layar sentuh berwarna 7 inci
Menyoroti:	Ten Nozzle High Speed , 60L Industrial Heating Tank , 40-60 bottles/min Output

HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine

The HFM-10N60L represents our high-speed hot filling solution with ten nozzles on a 60L double jacket tank. Achieving 40-60 bottles per minute with oil-circulation jacket heating up to 150°C, it meets the demands of large-volume contract manufacturers and brand owners in the cosmetic and pharmaceutical sectors.

Key Features

Ten Nozzle High-Speed Configuration: Maximum throughput with ten simultaneous filling positions on a precision-indexed conveyor.
60L Double Jacket Tank: Oil-circulation jacket heating to 150°C with uniform temperature distribution and continuous stirring.
40-60 Bottles/Min Output: Production-optimized for 24/7 operation with durable pneumatic and servo components rated for continuous duty.
Wide Fill Range: Handles 5ml to 1000ml volumes without nozzle change, enabling multi-SKU production on a single line.
7-inch Color Touch Screen: Full production dashboard with real-time metrics, recipe management, and IoT-ready connectivity.

Technical Specifications

Parameter	Specification
Model	HFM-10N60L
Nozzles	10
Tank	60L Double Jacket
Output	40-60 bottles/min
Temperature	RT-150°C
