HFM-8N50L Eight Nozzle Automatic Hot Filling Machine 50L Tank High Output Inline Production

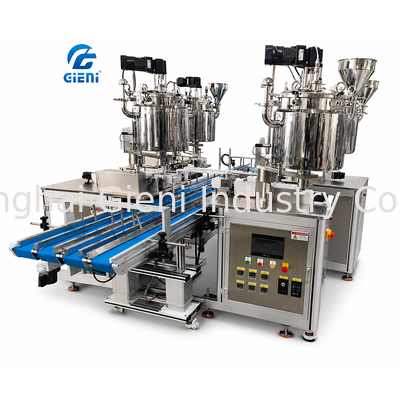

Gambar besar : HFM-8N50L Eight Nozzle Automatic Hot Filling Machine 50L Tank High Output Inline Production

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	Gieni
Sertifikasi:	CE, ISO 9001
Nomor model:	HFM-8N50L

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD 15000-22000 / Set
Kemasan rincian:	Peti kayu ekspor tugas berat dengan kemasan pengatur suhu
Waktu pengiriman:	30-40 hari kerja
Syarat-syarat pembayaran:	T/T, L/C
Menyediakan kemampuan:	15 set per bulan

Kontak

HFM-8N50L Eight Nozzle Automatic Hot Filling Machine 50L Tank High Output Inline Production

Deskripsi

Kuantitas nosel:	8	Kapasitas Tangki:	50L
Kecepatan Produksi:	30-50 Botol/menit	Metode pemanasan:	Pemanasan Jaket Listrik
Kisaran Suhu:	RT-120°C	Rentang Pengisian:	5-500ml
Bahan tubuh:	Baja Tahan Karat 304	bahan kontak:	Baja Tahan Karat 316L
Kekuatan:	9 Kw	Voltase:	380V 3-fase
Kontrol:	Layar Sentuh PLC dengan Penghitung Produksi
Menyoroti:	Eight Nozzle High Output , 50L Large Capacity Tank , Inline Automatic Production

HFM-8N50L Eight Nozzle Automatic Hot Filling Machine

The HFM-8N50L is an industrial-grade eight nozzle hot filling machine engineered for continuous high-output production. With a 50L heated tank and PLC-controlled inline conveyor system, it delivers 30-50 bottles per minute for large-scale cosmetic and pharmaceutical manufacturers.

Key Features

Eight Nozzle High Throughput: Simultaneous eight-position filling on a continuous indexing conveyor for maximum line speed.
50L Large Capacity Tank: Extended production runs without refilling, with jacket heating and PID temperature control.
30-50 Bottles/Min Output: Production-optimized indexing system with adjustable conveyor speed to match downstream equipment.
Inline Integration Ready: Standard conveyor height and interface for seamless integration with bottle feeding, capping, and labeling machines.
Industrial PLC Control: Full production monitoring with batch counting, downtime logging, and maintenance alerts.

Technical Specifications

Parameter	Specification
Model	HFM-8N50L
Nozzles	8
Tank	50L
Output	30-50 bottles/min
Power	9 KW
