HFM-6N40L Six Nozzle Hot Filling Machine 40L Jacket Tank Servo Piston High Precision Filling

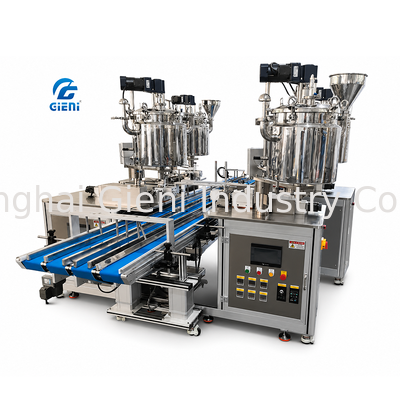

Gambar besar : HFM-6N40L Six Nozzle Hot Filling Machine 40L Jacket Tank Servo Piston High Precision Filling

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	Gieni
Sertifikasi:	CE, ISO 9001
Nomor model:	HFM-6N40L

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD 12000-18000 / Set
Kemasan rincian:	Peti kayu bertulang kelas ekspor dengan kemasan vakum
Waktu pengiriman:	25-35 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union
Menyediakan kemampuan:	20 set per bulan

Kontak

HFM-6N40L Six Nozzle Hot Filling Machine 40L Jacket Tank Servo Piston High Precision Filling

Deskripsi

Kuantitas nosel:	6	Kapasitas Tangki:	40L (Jaket Ganda)
Sistem Penggerak:	Piston Motor Servo	Metode pemanasan:	Pemanasan Listrik dengan Pengaduk
Kisaran Suhu:	RT-120°C	Akurasi Pengisian:	±0,3%
Rentang Pengisian:	5-500ml	Bahan tubuh:	Baja Tahan Karat 304
bahan kontak:	Baja Tahan Karat 316L	Kekuatan:	7 kW
Voltase:	380V 3-fase
Menyoroti:	Six Nozzle Servo Filling , 40L Jacket Heating Tank , High Precision Piston Fill

HFM-6N40L Six Nozzle Hot Filling Machine

The HFM-6N40L features six servo-driven piston nozzles paired with a 40L double jacket heating tank for high-volume production. Servo motor control delivers ±0.3% filling accuracy across a 5-500ml range, suitable for cosmetic creams, lip balms, and pharmaceutical ointments.

Key Features

Six Servo-Driven Nozzles: Individual servo motor per nozzle with independent stroke and speed control for maximum flexibility.
±0.3% Filling Accuracy: Closed-loop servo feedback ensures superior fill precision compared to pneumatic systems.
40L Double Jacket Tank: Large capacity with efficient jacket heating and continuous stirring for production runs up to 4 hours.
Wide Fill Range: Adjustable from 5ml to 500ml without changing parts, suitable for multiple product SKUs.
Recipe Storage: PLC memory stores up to 10 product recipes for instant recall during changeovers.

Technical Specifications

Parameter	Specification
Model	HFM-6N40L
Nozzles	6 (Servo)
Tank	40L Double Jacket
Accuracy	±0.3%
Fill Range	5-500ml
