VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

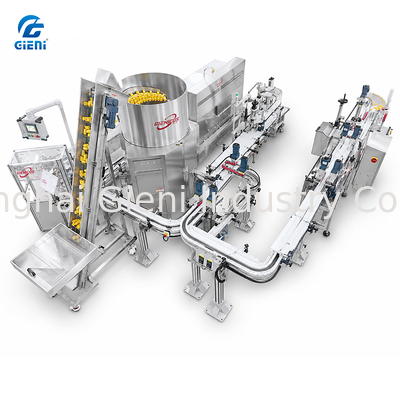

Gambar besar : VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

Detail produk:

Tempat asal:	Shanghai, Tiongkok
Nama merek:	Gieni
Sertifikasi:	CE, ISO 9001
Nomor model:	VS016-D

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	USD 30000-50000 / Set
Kemasan rincian:	Peti kayu bertulang kelas ekspor dengan perlindungan anti-getaran
Waktu pengiriman:	35-50 hari kerja
Syarat-syarat pembayaran:	T/T, L/C, Western Union
Menyediakan kemampuan:	15 set per bulan

Kontak

VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

Deskripsi

Tipe Mesin:	Lini Produksi Lipstik Otomatis Stasiun Ganda	Sistem Pengendalian:	PLC dengan HMI Independen Ganda
Kecepatan Produksi:	40-60 pcs/menit per stasiun	Stasiun Independen:	2 (Formula Terpisah per Stasiun)
Voltase:	3P 380V / 1P 220V	Kekuatan:	16 kw
Tekanan udara:	0,5-0,8 MPa	Bahan tubuh:	Baja Tahan Karat 304
bahan kontak:	Baja Tahan Karat 316L	Fungsi:	Pemuatan Tabung, Pengisian, Peleburan, Pembekuan, Pembatasan, Pengepresan, Pemisahan
Bahasa:	Cina / Inggris	Penyimpanan Resep:	20 Grup (10 per Stasiun)
Menyoroti:	Twin Formula Filling System , Simultaneous Two-Color Production , Dual Independent Filling Stations

VS016-D Dual-Station Automatic Lipstick Production Line

The VS016-D features two fully independent production stations operating simultaneously on a single line, enabling manufacturers to produce two different colors, formulas, or SKUs at the same time. Each station has its own filling parameters, temperature controls, and recipe storage, effectively doubling production flexibility without doubling floor space.

Key Features

Simultaneous Dual Production: Run two completely different lipstick formulations (colors, finishes, formulations) on the same line concurrently.
Independent Parameter Control: Each station has its own servo filling axis with independent stroke, speed, suck-back, and temperature settings.
20-Group Recipe Storage: 10 recipe groups per station for a total of 20 storable production parameter sets.
Shared Infrastructure: Tube loading, freezing, capping, and separation systems are shared, reducing cost and footprint compared to two separate lines.
Flexible Operation Modes: Run both stations simultaneously or operate a single station while the other is being cleaned or reconfigured.
Anti-Cross-Contamination: Physically separated filling paths with dedicated material hoppers and independent cleaning circuits.

Technical Specifications

Parameter	Specification
Model	VS016-D
Speed	40-60 pcs/min per station
Power	16 KW
Voltage	3P 380V / 1P 220V
Air Pressure	0.5-0.8 MPa

Label:

Kontak Person: Joan.WU

Tel: 8613482060127
